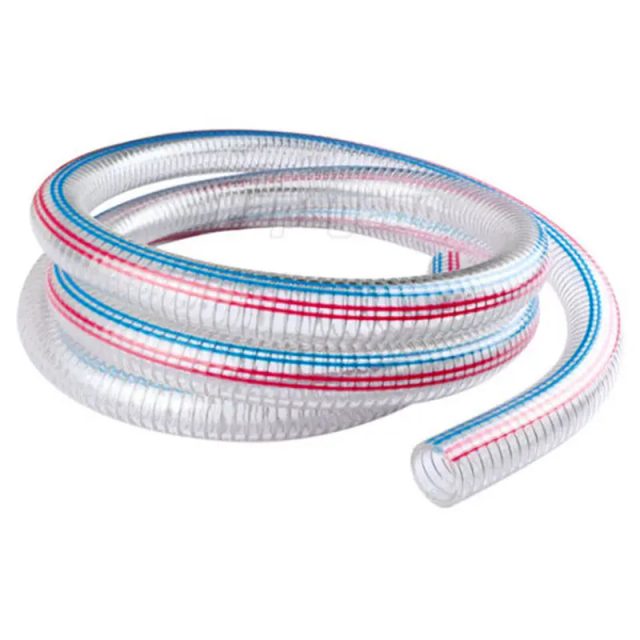

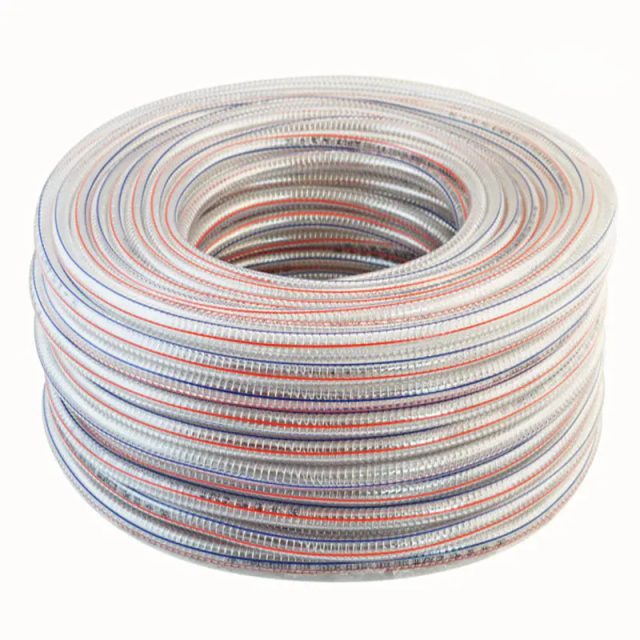

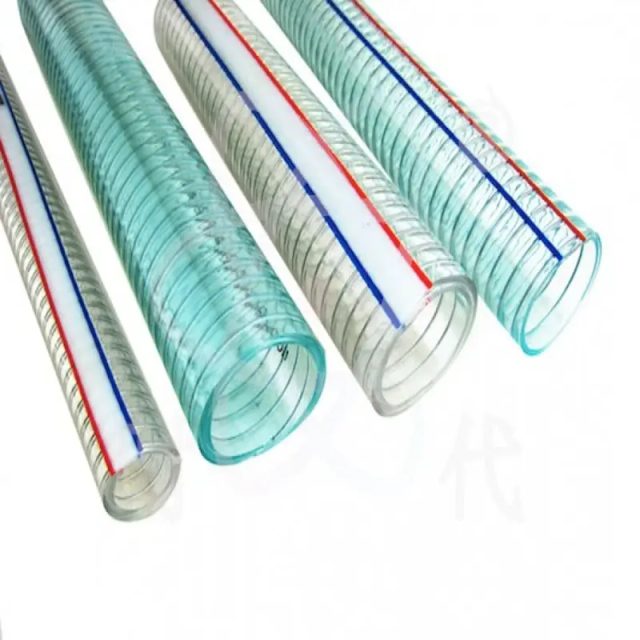

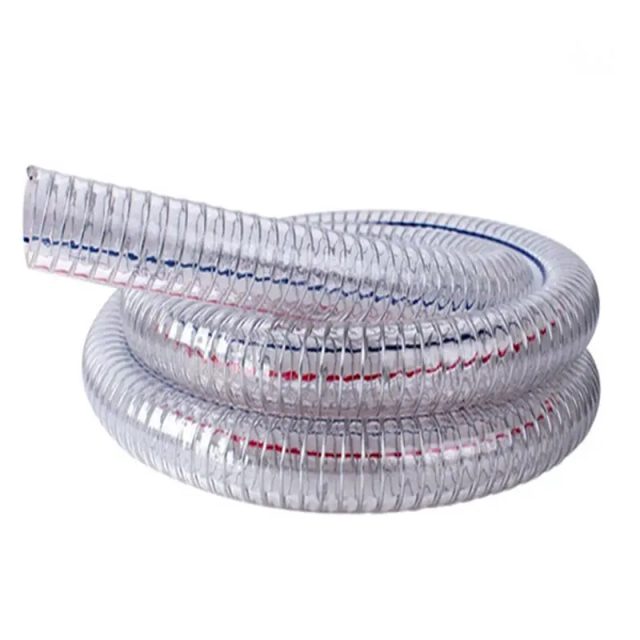

PUR Steel Wire Reinforced Hose

Name: PUR Steel Wire Reinforced Hose
SKU: PURSWR-31-25

Strengthened with spiral steel wire, the inner surface is smooth, wear-resistant, bending-resistant, and the fluid state inthe pipe can be clearly seen.

Model

Add to Quote Request a Quote

Features

Strengthened with spiral steel wire, the inner surface is smooth, wear-resistant, bending-resistant, and the fluid state inthe pipe can be clearly seen.

Application

Used for conveying particles, such as dust, powder, fibers, chips etc.

Technical Parameters

Specification	Value
Material	Polyester PUR
Fluid	Grain
Hardness	70A ~ 98A
Operating Temperature	-40°C ~ +90°C

Size, Model and Color Guide

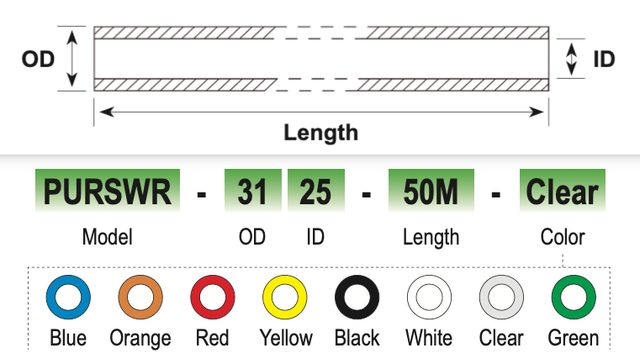

PUR Steel Wire Reinforced Hose technical drawing 1

PURSWR - OD ID - Length - Color

Dimensions: OD · ID · Length

Colors: Blue · Orange · Red · Yellow · Black · White · Clear · Green

Model Parameters

Part No.	OD	ID	Length	Inch	Max Working Pressure (bar at 20°C)	Max Burst Pressure (bar at 20°C)
PURSWR-31-25	31mm	25mm	50m	1.0	7bar	21bar
PURSWR-38-32	38mm	32mm	50m	1-1/4	7bar	21bar
PURSWR-45-38	45mm	38mm	40m	1-1/2	7bar	21bar
PURSWR-57-50	57mm	50mm	40m	2.0	6bar	18bar
PURSWR-64-57	64mm	57mm	20m	2-1/2	6bar	18bar
PURSWR-85-75	85mm	75mm	20m	3.0	5bar	15bar
