Spiral Hoses

PU Twin/Multi-Row Coiling Tube

Name: PU Twin/Multi-Row Coiling Tube
SKU: PUSC-0425

Included several PA,PU,PE tubes inside, and covered with PVC or TPU. Anti-wear, Space-saving, better color distinction.

Model

Features

Included several PA,PU,PE tubes inside, and covered with PVC or TPU. Anti-wear, Space-saving, better color distinction.

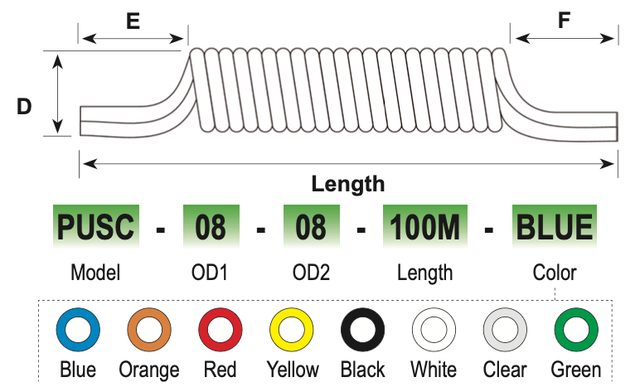

PUSC - OD1 - OD2 - Length - Color

Dimensions: D · E · F · Length

Colors: Blue · Orange · Red · Yellow · Black · White · Clear · Green

Model Parameters

Part No.	Length	D	E	F	Max Working Pressure (bar at 20°C)	Max Burst Pressure (bar at 20°C)
PUSC-0425	1~25m	25mm	80mm	80mm	10bar	30bar
PUSC-0640	1~25m	32mm	80mm	80mm	10bar	30bar
PUSC-0855	1~25m	40mm	80mm	80mm	8bar	24bar
PUSC-0850	1~25m	40mm	80mm	80mm	10bar	30bar
PUSC-1065	3~25m	48mm	80mm	80mm	10bar	30bar
PUSC-1280	3~25m	58mm	80mm	80mm	10bar	30bar
PUSC-1/4	1~25m	32mm	80mm	80mm	10bar	30bar
PUSC-3/8	3~25m	48mm	80mm	80mm	10bar	30bar
PUSC-1/2	3~25m	58mm	80mm	80mm	10bar	30bar
