PU/PUR Braided Tube

Name: PU/PUR Braided Tube
SKU: PBH-0850

Excellent restoring force, good chemical resistance, shock resistance, flexible and light, hardly loss in pressure, constant in hardness. The working pressure is 1.8 times than single-layer PU tube, and the serving life is above twice longer than single-layer PU tube. Non-toxic, tasteless, colors can be customized, easy for line identification. Comply with ROHS.

Model

Add to Quote Request a Quote

Features

Technical Parameters

Specification	Value
Material	Polyurethane
Fluid	Air, Water (other fluids)
Hardness	90A(PBH) / 85A(PBS)
Operating Temperature	-20°C ~ +80°C

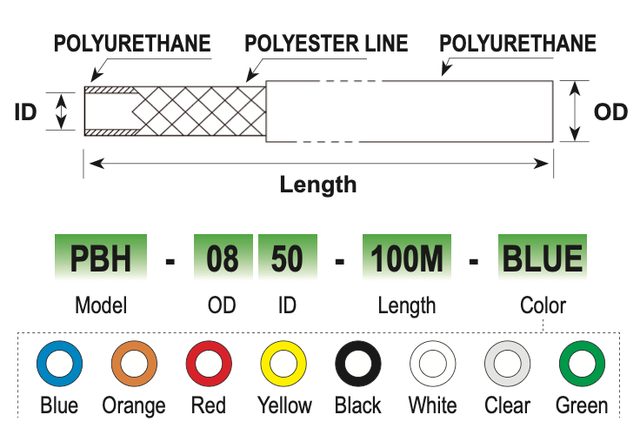

Size, Model and Color Guide

PBH - OD ID - Length - Color

Dimensions: OD · ID · Length

Colors: Blue · Orange · Red · Yellow · Black · White · Clear · Green

Model Parameters

Part No.	OD	ID	Length	Net Weight (kgs/roll)	Max Working Pressure (bar at 20°C)	Max Burst Pressure (bar at 20°C)	Max Bend Radius (mm at 20°C)
PBH-0850	8mm	5mm	100m	3.8	20bar	60bar	20mm
PBH-1065	10mm	6.5mm	100m	5.6	20bar	60bar	30mm
PBH-1280	12mm	8mm	100m	7.8	20bar	60bar	40mm
PBH-1410	14mm	10mm	100m	9.5	20bar	60bar	60mm
PBH-1612	16mm	12mm	100m	11	20bar	60bar	75mm
PBH-3/8	3/8"	1/4"	100m	4.9	20bar	60bar	30mm
PBH-1/2	1/2"	1/3"	100m	8.8	20bar	60bar	40mm
