PU Coiling Tube

Name: PU Coiling Tube
SKU: PUC-0425

The ester-based PU coiling tube, possess all the characteristics of common PU tube, more featuring with excellent flexibility and excelling in restoring force. Easy using and flexible for movable parts.

Model

Add to Quote Request a Quote

Features

Application

Industrial automation, pneumatic tools, tube for water and fluids, vacuum tubes, protective sleeve for metal and electronic products.

Technical Parameters

Specification	Value
Material	Polyester Polyurethane
Fluid	Air
Hardness	95A ~ 98A
Working Pressure (20°C)	0-10 bar
Burst Pressure (20°C)	30 bar
Operating Temperature	-20°C ~ +80°C
Size Tolerance	2~8mm: ±0.10mm; 10~16mm: ±0.15mm

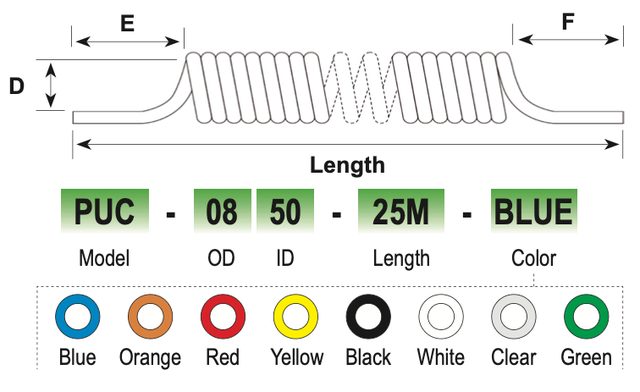

Size, Model and Color Guide

PUC - OD ID - Length - Color

Dimensions: D · E · F · Length

Colors: Blue · Orange · Red · Yellow · Black · White · Clear · Green

Model Parameters

Part No.	Length	D	E	F	Max Working Pressure (bar at 20°C)	Max Burst Pressure (bar at 20°C)
PUC-0425	1~25m	25mm	80mm	80mm	10bar	30bar
PUC-0640	1~25m	32mm	80mm	80mm	10bar	30bar
PUC-0855	1~25m	40mm	80mm	80mm	8bar	24bar
PUC-0850	1~25m	40mm	80mm	80mm	10bar	30bar
PUC-1065	3~25m	48mm	80mm	80mm	10bar	30bar
PUC-1280	3~25m	58mm	80mm	80mm	10bar	30bar
PUC-1/4	1~25m	32mm	80mm	80mm	10bar	30bar
PUC-3/8	3~25m	48mm	80mm	80mm	10bar	30bar
PUC-1/2	3~25m	58mm	80mm	80mm	10bar	30bar
