PFA Tube
PFA tube has transparent and exquisite appearance. It can maintain its elasticity even under the low temperature and still retain the good mechanical property under the high temperature. The impact and bending fatigue have extremely high resistance and chemical stability.
Features
PFA tube has transparent and exquisite appearance. It can maintain its elasticity even under the low temperature and still retain the good mechanical property under the high temperature. The impact and bending fatigue have extremely high resistance and chemical stability.
Technical Parameters
| Specification | Value |
|---|---|
| Material | PFA |
| Fluid | Strong acid, Strong alkali, Oil, Water, High temperature gas |
| Hardness | 55D |
| Operating Temperature | -200°C ~ +260°C |

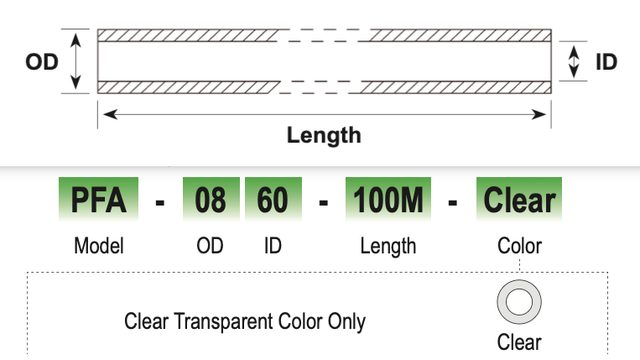

Size, Model and Color Guide
PFA - OD ID - Length - Color
Dimensions: OD · ID · Length
Colors: Clear
Model Parameters
| Part No. | OD | ID | Length | Net Weight (kgs/roll) | Max Working Pressure (bar at 20°C) | Max Burst Pressure (bar at 20°C) |
|---|---|---|---|---|---|---|
| PFA-0420 | 4mm | 2mm | 200m | 4.3 | 28bar | 84bar |
| PFA-0640 | 6mm | 4mm | 200m | 7.2 | 18bar | 54bar |
| PFA-0860 | 8mm | 6mm | 100m | 5 | 12bar | 36bar |
| PFA-1080 | 10mm | 8mm | 100m | 6.5 | 8bar | 24bar |
| PFA-1/4 | 1/4" | 0.167" | 100m | 3.4 | 18bar | 54bar |
